Chinese Professional Manure Machine - Rotary Screening Machine, For particles less than 30mm in diameter – Tianci
Get quotation
+8613203835178Chinese Professional Manure Machine - Rotary Screening Machine, For particles less than 30mm in diameter – Tianci Detail:
The Machine Can Be Divided Into Three Parts
1. Frame part: the frame of this machine is welded with high-quality carbon steel plate and channel steel, and has passed strict product qualification certification and specific process requirements, and has achieved the purpose of this machine;
2. Transmission and screening part: This part adopts a combined screen, which is transmitted to the main shaft by the transmission wheel through the coupling, and the screen is installed and welded on the rolling cage of the main shaft. The material enters from the feeding end, is continuously rotated and graded in the rolling cage, and flows out evenly from the lower discharge port, which effectively separates the finished product from the returned material, thereby reducing labor intensity;
3. Transmission connection part: The motor drives the pulley, the V-belt and the reducer to drive, so that the main shaft rotates. The transmission reducer and the working part of the main engine are driven by the pin-type coupling, which is convenient for assembly and maintenance.
Technical Parameters
|
Model |
Cylinder |
Rotary speed |
Inclination |
Power |
Production capacity |
Outline dimension |
Weight |
|
|
Diameter |
Length |
L×W×h |
||||||
|
mm |
mm |
r/min |
° |
kw |
t/h |
m |
t |
|
|
GS1.0×3.0 |
1000 |
3000 |
22 |
2-2.5 |
2.2 |
1-3 |
3.5×1.4×2.2 |
1.5 |
|
GS1.2×4.0 |
1200 |
4500 |
17 |
2-2.5 |
3.0 |
3-5 |
5.2×0.6×2.4 |
2.3 |
|
GS1.5×5.0 |
1500 |
5000 |
14 |
2-2.5 |
5.5 |
5-10 |
5.7×1.6×2.4 |
2.5 |
|
GS1.6×6.0 |
1600 |
6000 |
12 |
2-2.5 |
7.5 |
10-20 |
6.9×1.9×3.0 |
3.8 |
|
GS1.8×7.0 |
1800 |
7000 |
11.5 |
2-2.5 |
11 |
20-25 |
7.3×2.0×3.0 |
4.7 |
|
GS1.8×9.0 |
1800 |
9000 |
11.5 |
2-2.5 |
18.5 |
20-30 |
9.0×2.2×3.2 |
6.0 |
|
GS2.0×10 |
2000 |
10000 |
10 |
2-2.5 |
22 |
25-50 |
9.0×2.2×3.2 |
7.2 |

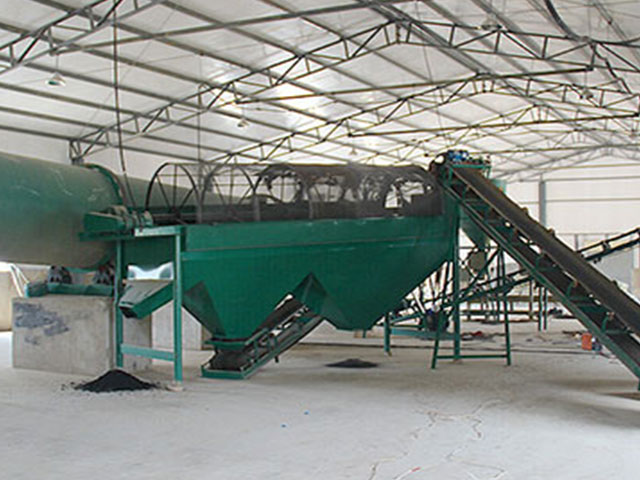

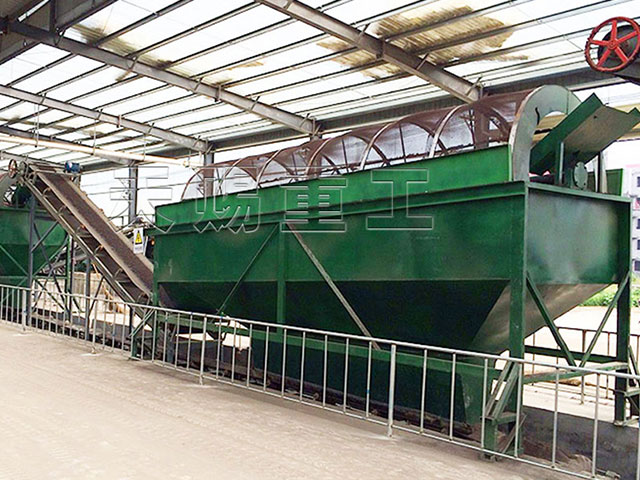

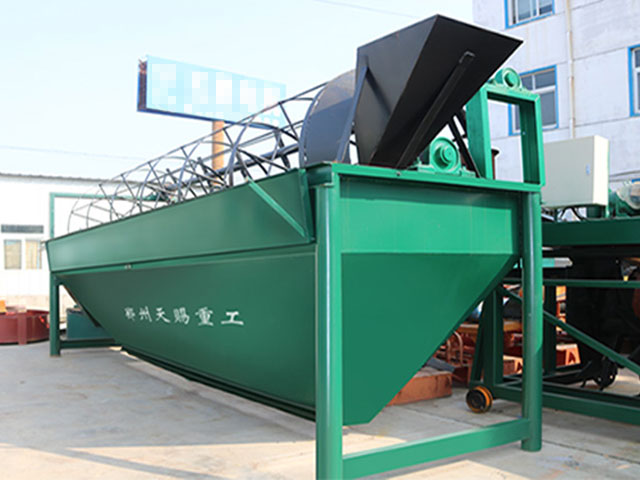

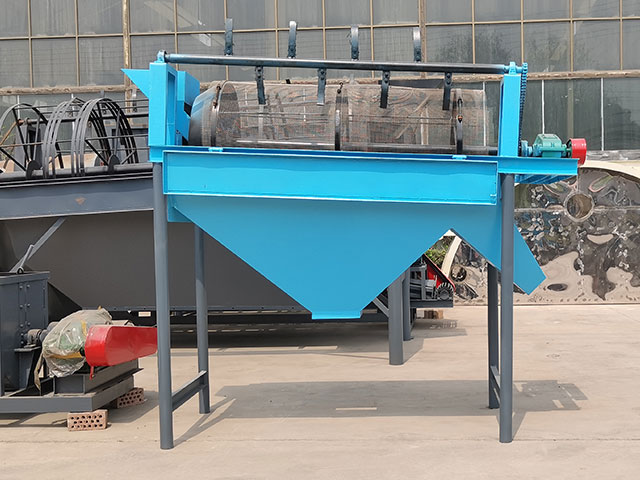

Product detail pictures:
