+8613203835178Factory Cheap Hot Npk Manufacturing Process - Belt Conveyor-Belt conveyor with inclination of Angle 36 – Tianci Detail:
Applications and Features
Tape conveyor is also called belt conveyor, which is the main equipment of organic fertilizer production. Conveyor belt movement according to the principle of friction transmission, suitable for conveying bulk density less than 1.67 ton / CBM, that easy to extract the powder, granular, small pieces of low-cut materials and bags of materials, such as coal, gravel , sand, cement, fertilizer, grain and so on.
Tape conveyor can be used in the ambient temperature -20℃ to +40℃range, the temperature of transmission materials are less than 60℃.
The captain and assembly form can be determined according to user requirements, the drive can be used electricity drum, can also be used with the drive frame drive device.
Belt Conveyor Applicable Scope
Belt conveyor can be used for horizontal transport or tilting transport, the use of very convenient, which is widely used in a variety of modern industrial enterprises, such as: mine underground tunnel, mine ground transportation system, open pit and collection areas.
According to the requirements of the conveyor process, can be a single conveyor, but also a number of components or other transport equipment to form a horizontal or inclined transport system to meet the different layout of the line needs.
Working Principle of Belt Conveyor:
The belt conveyor consists of two end rollers and a closed conveyor belt on it. 1.The drum that drives the rotation of the conveyor belt is called the drive roller; The other is only the drum that changes the direction of movement of the conveyor belt.
2.The drive drum is driven by the motor through the reduce driver, and the conveyor belt is depend on the friction between the drive roller and the conveyor belt.
3.Driving rollers are generally mounted on the discharge side to increase traction and facilitate dragging.
4.The material is fed by the feed end and falls on the rotating conveyor belt, which is driven by the conveyor belt friction reach to the discharge end.
Main Technical Parameters
|
Belt width(mm) |
Conveying length(M) Power(KW) |
Conveying speed(m/s) |
Delivery quantity(t/h) |
||
|
500 |
≤12 3 |
12-20 4-5.5 |
20-30 5.5-7.5 |
1.3-1.6 |
78-191 |
|
650 |
≤12 4 |
12-20 5.5 |
20-30 7.5-11 |
1.3-1.6 |
131-323 |
|
800 |
≤6 4 |
6-15 5.5 |
15-30 7.5-15 |
1.3-1.6 |
278-546 |
|
1000 |
≤10 5.5 |
10-20 7.5-11 |
20-40 11-22 |
1.3-2.0 |
435-853 |
|
1200 |
≤12 7.5 |
10-20 11 |
20-30 15-30 |
1.3-2.0 |
655-1284 |

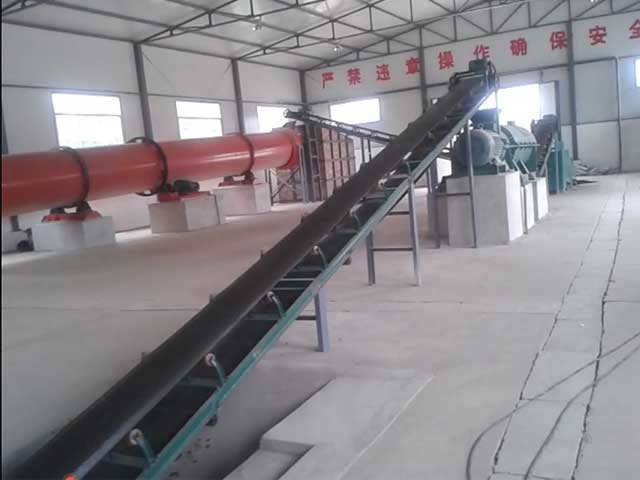

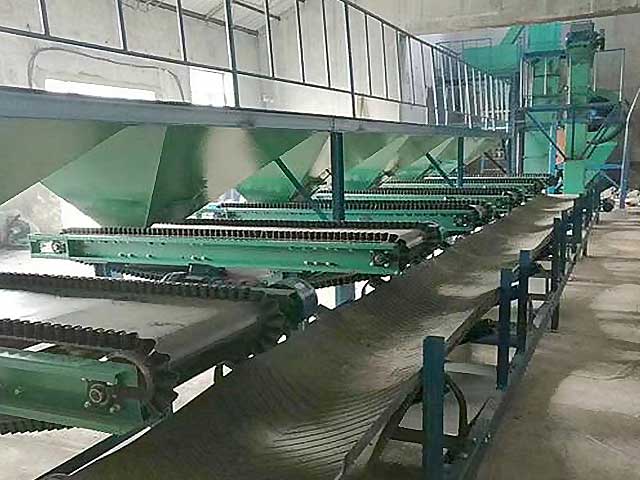

Product detail pictures:
