Fertilizer Forklift Feeding Bin

Usage: Conveying fertilizer raw materials
Production Capacity: 1-20t/h
Matching Power: 6.6kw
Raw Materials: Poultry manure, organic compost, straw, farm waste and so on.

Get quotation

+8618937171932

Product Detail

Product Tags

Product Description

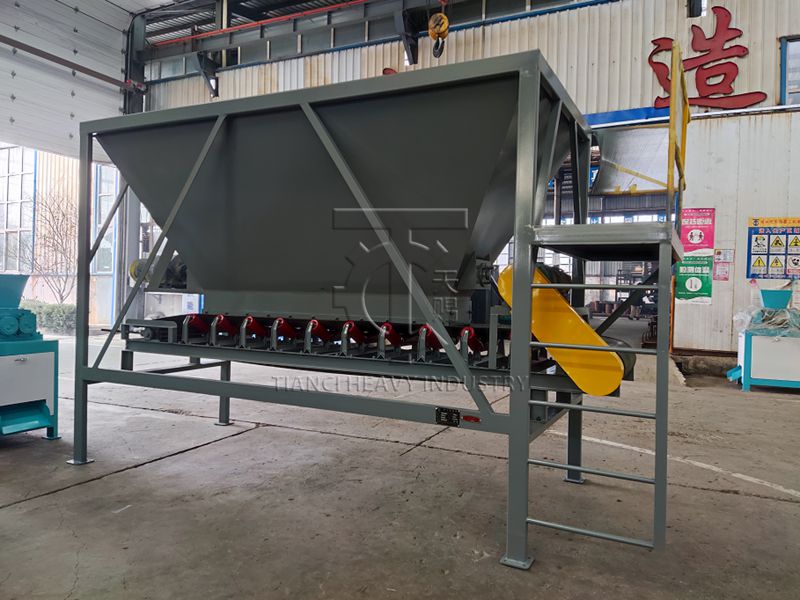

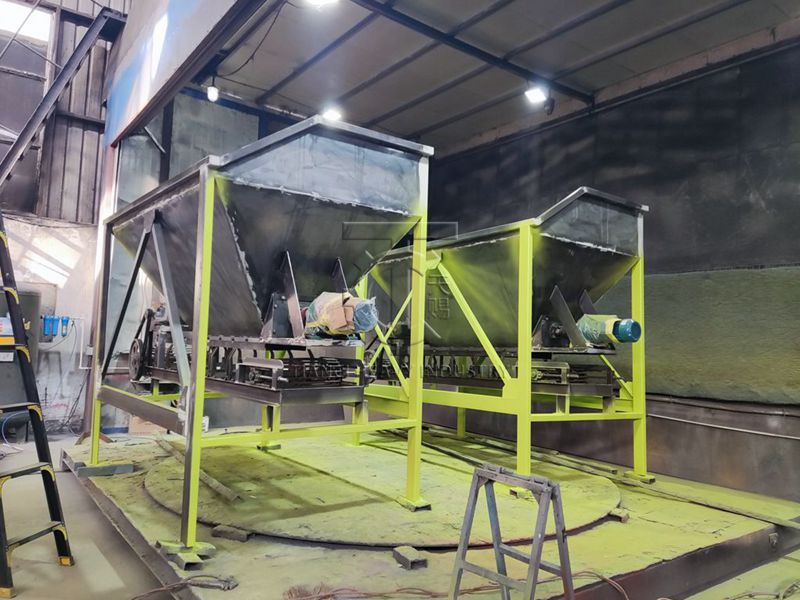

The forklift feeding bin is an organic fertilizer equipment in the whole organic fertilizer production line. It plays the role of material storage and transportation in the organic fertilizer production line. This equipment can transport both fine materials and bulk materials. The machine is composed of frame, shell, buffer net and conveyor. It has the functions of strong adaptability, adjustable conveying capacity and continuous and uniform conveying of various materials. It is widely used in agriculture, building materials, chemical industry, metallurgy and other work sectors.

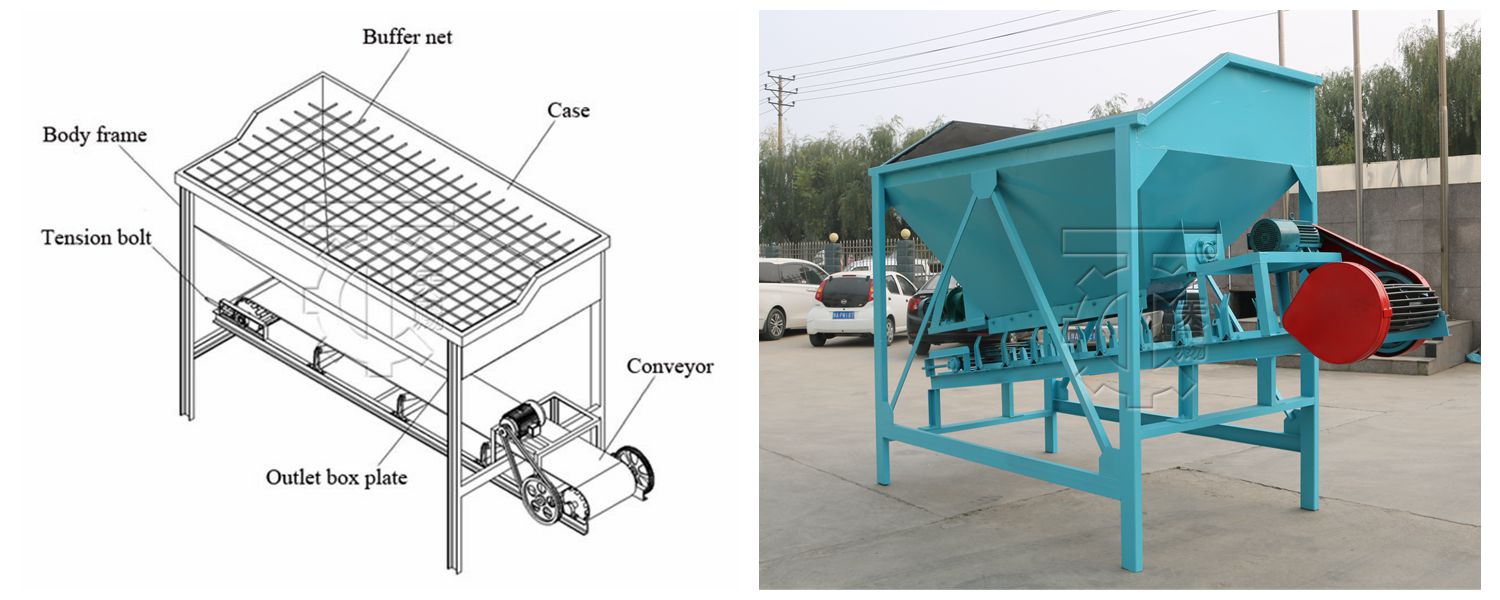

Structure

1. Bin: Temporary storage of raw materials.

2. Grate net: filter bulk materials.

3. Mixing device: Pulverize the agglomerated material and prevent the material from being blocked.

4. Belt conveyor: supply the material from the silo to the receiving equipment evenly or quantitatively.

5. Rack: Connect each component and play a fixed supporting role.

Technical Parameters

Model	Power (KW)	Feeding port height(mm)	Outlet port height(mm)	Dimension (LWH)(mm)
1200*2500	3	1985	810	37501330220
1500*2500	3	2250	700	360016302650
1500*2500	3	2650	1470	383016302850
1500*3000	3	2650	1400	410016302850
2000*3000	4	2600	700	420021303100
