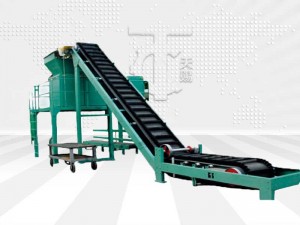

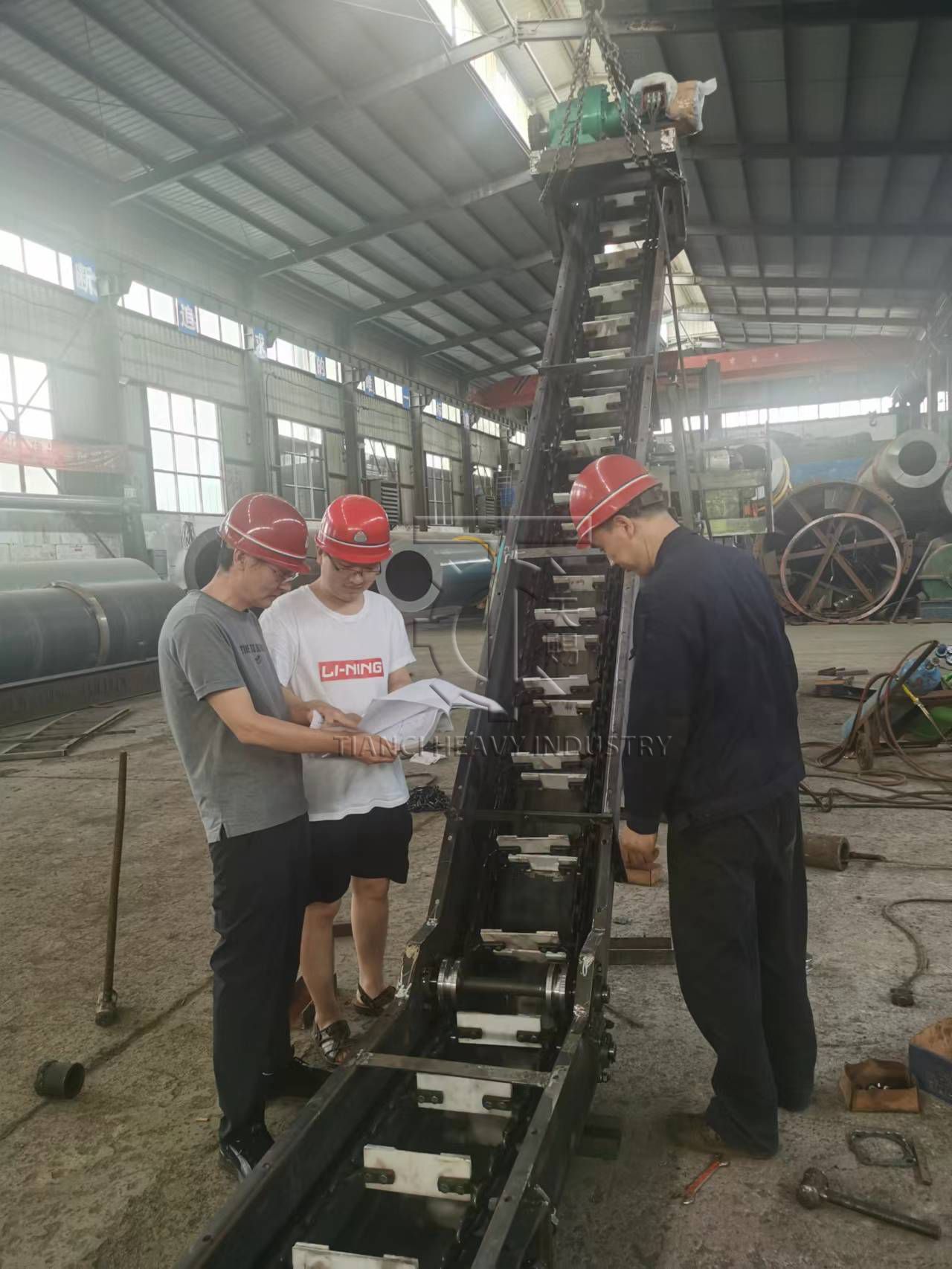

Large Angle Belt Conveyor

Usage: Conveying materials for the production line
Production Capacity: 9- 360 m³/h
Bandwidth: 300-800 mm
Applicable Materials: It is widely used in agriculture, building materials, chemical industry, metallurgy and other work sectors.

Get quotation

+8618937171932

Product Detail

Product Tags

Product Description

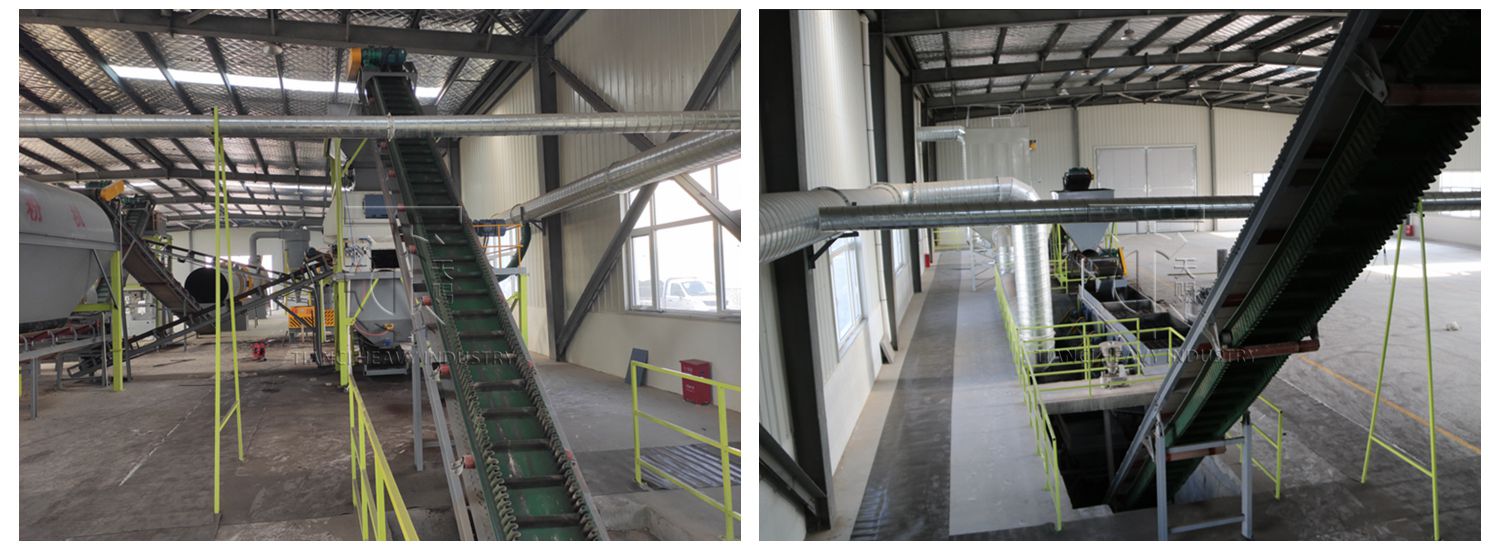

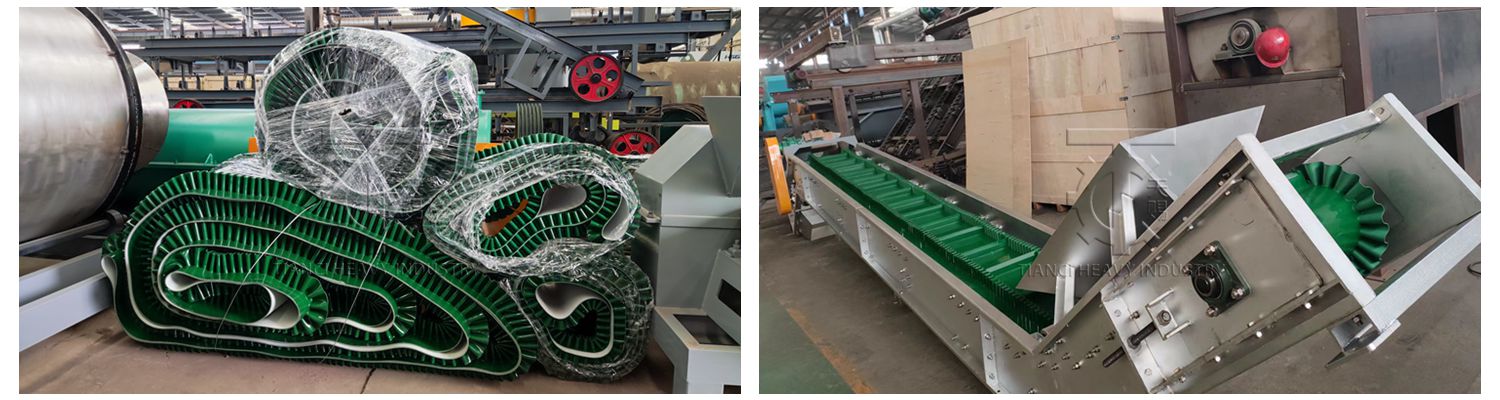

In the process of fertilizer production, due to the large equipment and the large inclination of some conveying processes, the large inclination belt conveyor will be selected.

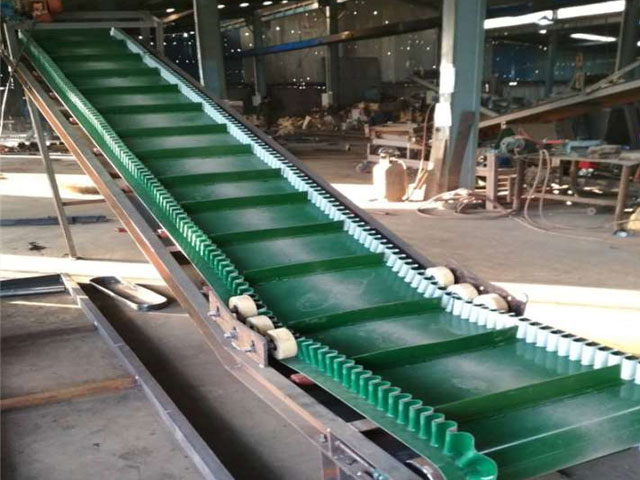

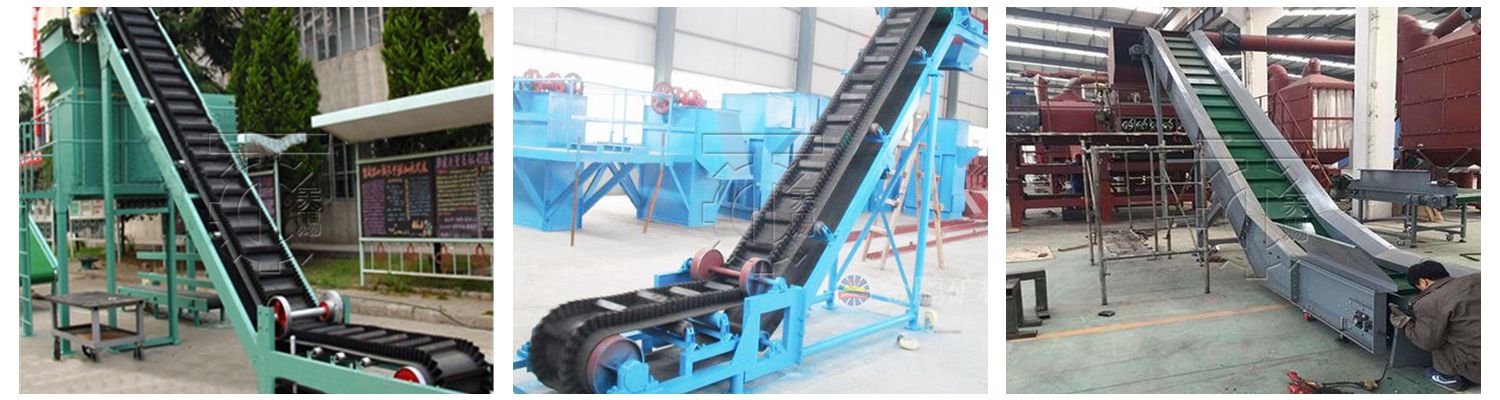

This series of products mainly used for continuous transportation of bulk materials with large dip angle, using a wave baffle edges and cross baffles the conveyor belt, the conveying angle for 0-90 degrees (70 degrees below best) the series of products are widely used in coal, food, building, materials, chemical industry, hydropower, agriculture, port, metallurgy, etc. A variety of bulk materials with a bulk density of 0.5-2.5t/m³ in the ambient temperature of -19℃--+40℃. For materials with special requirements, such as high temperature or acid and alkali, oil material, can be used in accordance with the needs of the special design of the corresponding materials.

Features

The characteristics of large inclination belt conveyor are as follows

(1) Large scale equipment. Its main technical parameters and equipment are developing towards large-scale to meet the needs of high-yield, high-efficiency and intensive production with an annual output of more than 3-5 million tons.

(2) Low energy consumption and high efficiency. Due to the light weight of the moving parts and the small invalid transport volume, the belt conveyor has low energy consumption and the highest efficiency in all continuous and non continuous transport.

(3) The use of multi machine drive, intermediate drive and power balance, and conveyor direction changing operation technologies have made the length of single machine operation of the conveyor unlimited in theory, and ensured the versatility, interchangeability of the conveyor system equipment and the reliability of unit drive.

(4) New and high reliability key component technology. Various advanced high-power driving devices and speed regulating devices, high-speed idlers with long service life, self-cleaning roller devices, high-efficiency belt storage devices, fast self moving tail, etc.

Technical Parameters

Band width B		300	400		500		650			800			800
Block edge high H		40	60	80	80	120	80	120	160	120	160	200	160	200	240
Head diameter series		Φ200-φ316	Φ315-φ400		Φ315-φ500		Φ315-φ500			Φ400-φ630			Φ400-φ630
Transport volume	30°hrs	16	23	36	50	70	74	105	122	135	164	204	240	300	359
Give an example	40°hrs	12	19	25	33	60	49	90	106	116	142	175	195	240	310
m³/h	50°hrs	9	15	19	23	41	35	61	75	78	100	120	137	165	210
Outline dimension	Head wheel center high H1	350-1000			1100-2000		1300-2000			1600-2000
	Tail wheel center high H2	350	350-500		600					800
	Middle segment with high H3	450	500-700		760-800		760-850			1000-1135			1050-1135
	The middle section of the anchor width of B1	480	580		870		1020			1220			1440
