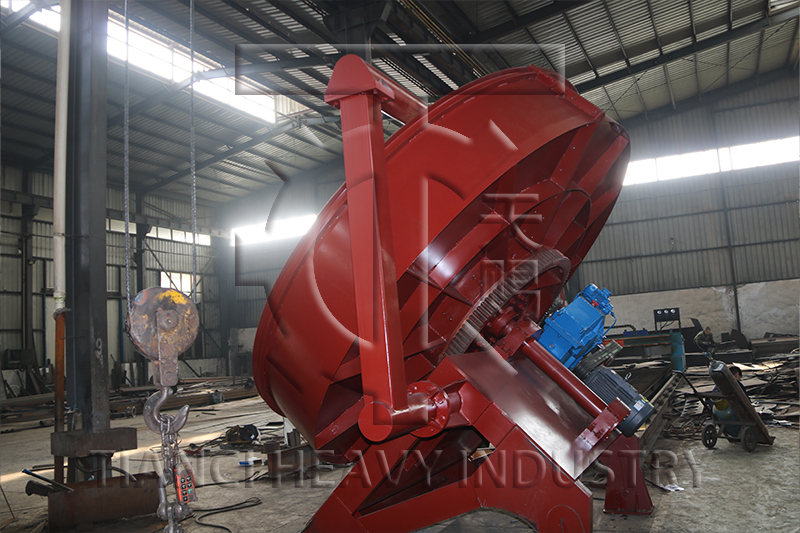

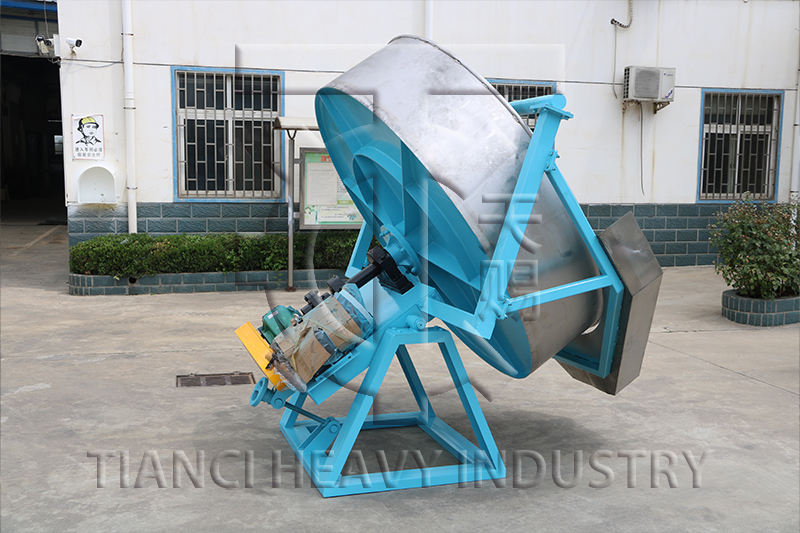

The disc granulator can be divided into five parts:
1. Frame part: Since the transmission part and the rotating working part of the whole body are supported by the frame, the force is relatively large, so the frame part of the machine is welded by high-quality carbon channel steel, and has passed strict quality certification and specific technical requirements, have achieved the purpose of this machine.
2. Adjustment part: The most important part of the whole machine is the granulation disc, and the entire center of gravity of the granulation disc is installed on the adjustment part. Our company specially adopts high-quality carbon steel plate and channel steel to weld, and has passed strict quality certification, all meet the requirements of this machine.
3. Transmission part: The transmission part of the whole machine is the most important, and the overall work must be carried out according to this. The motor and reducer on the installation and transmission adjustment frame are all free from inspection products certified by ISO/9001 quality system, and the quality is reliable. The motor drives the pulley, the V-belt, the reducer and the pinion, and the pinion drives the large gear on the granulation plate to make the granulation plate work. In addition, the large and small gears adopt high-frequency quenching, and the service life is twice as long as the original one. The whole granulation disk is fixed on the driving shaft on the adjustment disk, and the connecting part of the column head adopts taper fit, which is more reasonable in design;
4. Part of the granulation plate: The angle of the granulation plate of this machine adopts the overall arc design, and the granulation rate can reach more than 93%. The bottom of the granulation plate is also reinforced with a number of radiant steel plates, which is durable and never deformed;
5. Automatic material cleaning part: This part is installed above the granulation plate, forming a lower frame shape, with an automatic material cleaning plate on it, so as to remove the material stuck on the plate wall during the production process, greatly improving the service life of the machine , and save labor.
The structure of the disc granulator determines the characteristics, which are mainly summarized into 11 major elements:
1. The angle of the granulation disc adopts an overall arc structure, and the granulation rate can reach more than 93%.
2. The granulation tray is equipped with three outlets, which is convenient for intermittent production operations, greatly reduces labor intensity and improves labor efficiency.
3. The reducer and the motor are driven by a flexible belt, which can start smoothly, reduce the impact force, and improve the service life of the equipment.
4. The bottom of the granulation tray is reinforced with multiple radiant steel plates, which is durable and never deformed. The thickened, heavier, and sturdy base design does not require anchor bolts to fix it, and it runs smoothly.
5. The main gear of the granulator adopts high-frequency quenching, and the service life is doubled.
6. The disc of the granulator is lined with high-strength fiberglass, which is anti-corrosion and durable.
7. The frame part of the whole machine is welded by high-quality carbon channel steel.
8. The adjustment part is welded by high-quality carbon steel plate and channel steel.
9. The transmission parts are all free from inspection products certified by ISO/9001 quality system, and the quality is reliable. The high-frequency quenching is adopted, and the service life is twice as long as the original one. The taper fit is used for the connection part of the column head, and the design is more reasonable.
10. The part of the granulation disc adopts the overall arc design, which is durable and never deformed.
11. The automatic material cleaning part is equipped with an automatic material cleaning plate, so as to remove the material stuck on the plate wall during the production process, greatly improving the service life and saving labor.
