Full granulation function and high production efficiency
Professional China Fertilizer Mixing Plant - Vertical grinder, disc shape – Tianci
Get quotation
+8613203835178Professional China Fertilizer Mixing Plant - Vertical grinder, disc shape – Tianci Detail:
Applications and Features
Disc mixer is a kind of machine which is mainly used for mixing raw materials. The machine is made of polypropylene plate lining or stainless steel plate, which is not easy to stick and wear resistance. The cycloidal pinwheel reducer has the advantages of compact structure, convenient operation, uniform mixing and convenient unloading and conveying.
The materials are fully mixed, thereby improving the mixing uniformity, a novel rotor structure, the minimum clearance of the rotor and the shell can be adjusted to close to zero, effectively reduce the residual material, disc uses polypropylene plate lining or stainless steel plate, so it is not easy to stick, abrasion resistance, using cycloid reducer has the advantages of compact structure, convenient operation, uniform mixing and unloading transportation convenience and so on. The overall structure is more reasonable, beautiful appearance, convenient operation and maintenance.
The working principle of the disc mixer: the motor drives the reducer, the reducer drives the spindle, and the spindle drives the stirring material.
Disc mixer structure: all the working body of the machine is installed and fixed on the frame. The frame of the machine is made of carbon steel plate and welded with channel steel. And through the strict product certification and specific process requirements to achieve the purpose of use.
Main Technical Parameters
|
Model |
Mixer |
Rotate Speed （r/min） |
Power （kw） |
Prod Capacity （t/h） |
Overall dimensions （LWH）（mm） |
Quality （Kg） |
|
|
Diameter （mm） |
Wall Height （mm） |
||||||
|
PJ1600 |
1600 |
400 |
12 |
5.5 |
3-5 |
1612×1612×1368 |
1200 |
|
PJ1800 |
1800 |
400 |
10.5 |
7.5 |
4-6 |
1900×1812×1368 |
1400 |
|
PJ2200 |
2200 |
500 |
10.5 |
11 |
6-10 |
2300×2216×1503 |
1668 |
|
PJ2500 |
2500 |
550 |
9 |
15 |
10-16 |
2600×2516×1653 |
2050 |

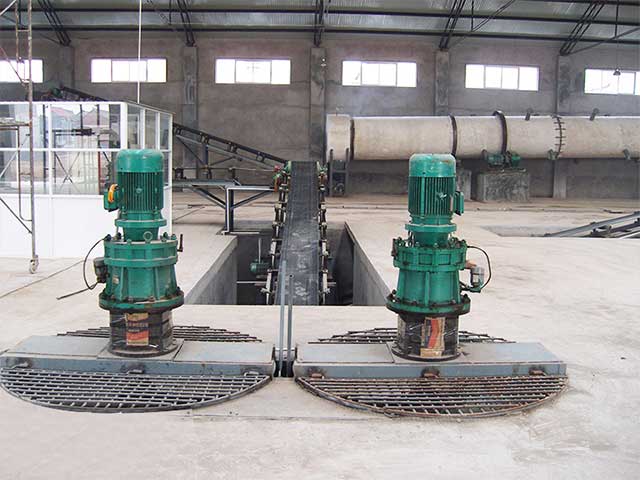

Product detail pictures:
