Fertilizer Screw Conveyor

Usage: Conveying materials for the production line
Screw diameter: 160-400 mm
Transport volume: 1-85.3 m³/h
Rotation speed: 36-112 r/min
Applicable Materials: NPK compound fertilizer materials or organic compost

Get quotation

+8618937171932

Product Detail

Product Tags

Product Description

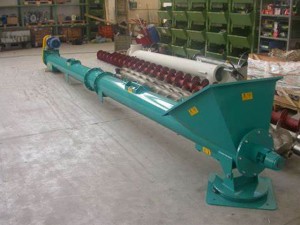

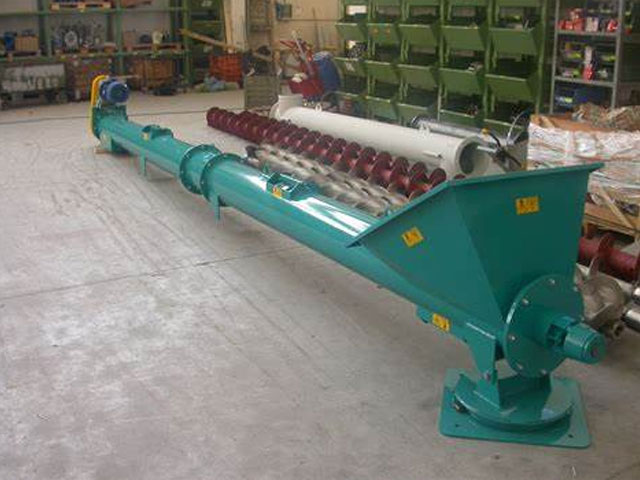

The screw conveyor adopts steel pipe conveying cylinder, which has high rigidity, good sealing performance, no leakage, and improves the working environment.

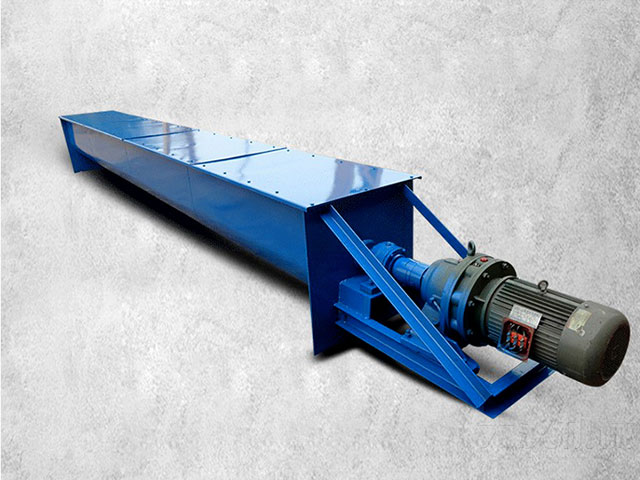

The transmission device adopts the motor direct-connected cycloidal pinwheel reducer, which has high power, low noise, compact structure and reliable transmission. The whole machine can be installed horizontally or obliquely, with small footprint, easy installation and easy use.

Detail Information

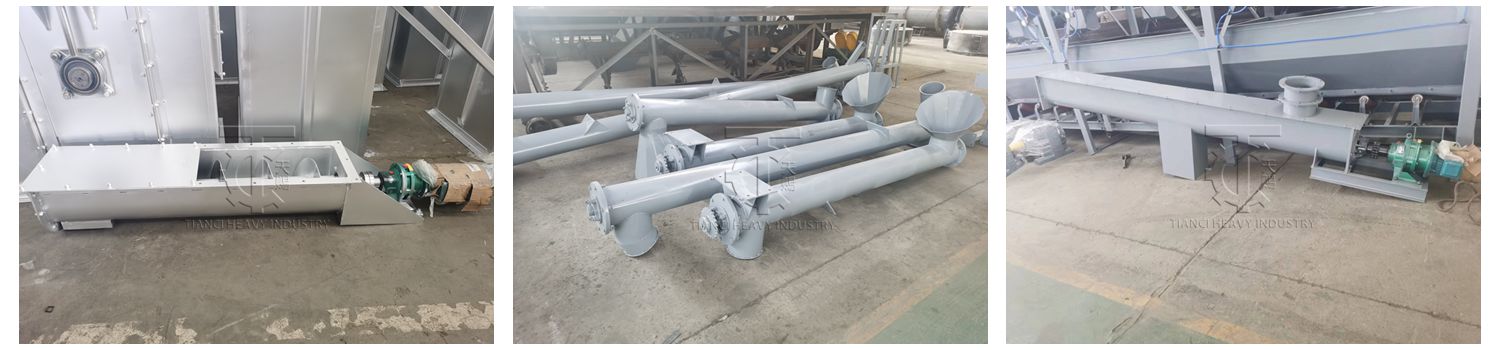

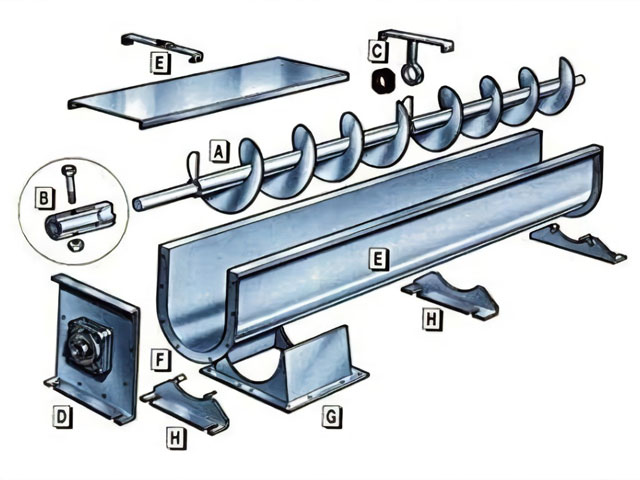

1. The screw conveyor is a non-basic fixed type. It is composed of a geared motor device and a casing tube, and the screw assembly is connected to each other in turn, and is combined into a complete set of equipment, which is very convenient to move, disassemble and assemble.

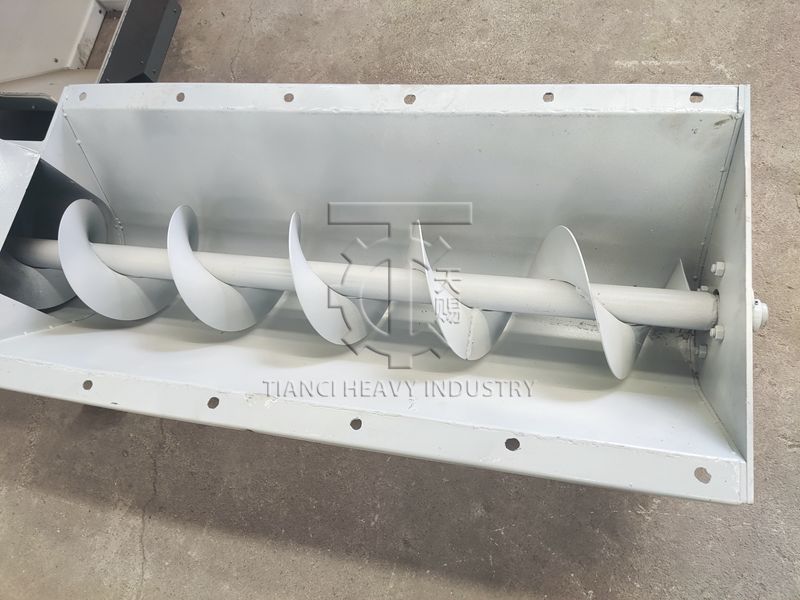

2. The screw assembly and the shaft end are connected by splines, which is easy to assemble and disassemble, has a large bearing capacity, good neutrality, and is safe and reliable.

3. The sealing performance is good, the shell is made of seamless steel pipe, and each end is connected by flanges, the whole machine has no dust leakage, and neither wastes materials, so as to create a good working environment and meet environmental protection requirements.

4. Small size, high speed, variable pitch, to ensure fast and even delivery.

5. The feeding port can be made into the required inclination angle according to the working site conditions, and can be connected by flange, bag connection and universal joint flange, which can be selected by users according to their needs.

Technical Parameters

Model	Spiral diameter (mm)	Rotary speed (r/min)	Standard volume delivery(m3/h)
LS160	160	112	9.7-3.2
		90	7.8-2.6
		71	6.2-2.1
		56**	4.9-1.6
LS200	200	100	16.9-5.6
		80	13.5-4.5
		63	10.7-3.6
		50**	8.5-2.8
LS250	250	90	29.9-9.9
		71	23.5-7.8
		56**	18.5-6.2
		45**	14.9-5.0
LS315	315	80	52.9-17.6
		63	41.6-13.9
		50**	33.1-11.0
		40**	26.4-8.8
LS400	400	71	85.3-28.2
		56	67.3-22.4
		45**	54.1-18
		36**	43.2-14.4
